Custom sintered NdFeB magnets for engineered systems.

A sintered NdFeB magnet is only useful when its geometry, grade, coating and magnetization fit the assembly around it. Start with the form you know, or bring the drawing that defines the form.

Start with a project basis

PRODUCT FIELD / SHAPE, GRADE, COATING AND MAGNETIZATION STAY CONNECTED.

ONE MATERIAL FAMILY

Read the application through its geometry.

Blocks, discs, rings, arcs, countersunk forms and custom geometries are starting points. Final values remain subject to the approved drawing, specification and inspection context.

GEOMETRY INDEX

Choose a starting form.

Every route can move from a known family to an engineering review.

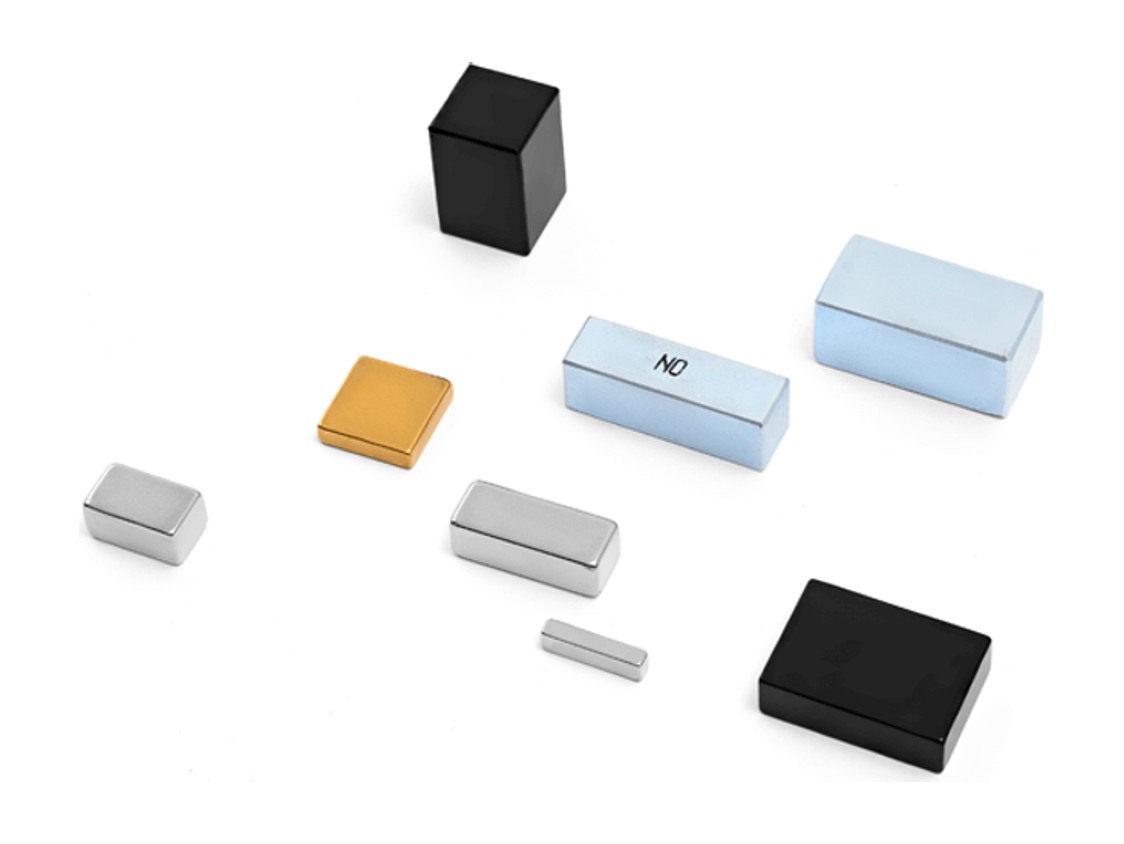

Blocks

FAMILY / RECTANGULAR

Straight-edged forms for assemblies that need a defined footprint and a clear pole orientation.

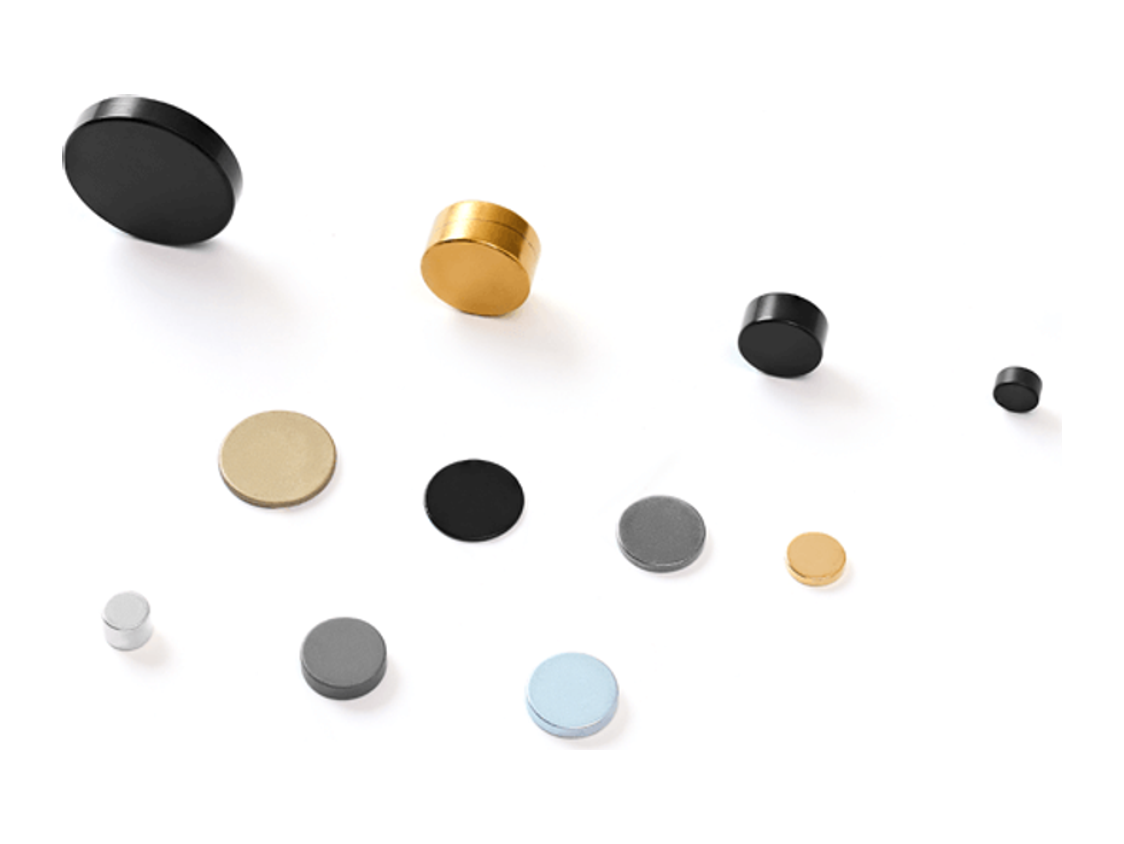

Discs

FAMILY / ROUND

Axially oriented disc magnets for compact assemblies and repeatable round interfaces.

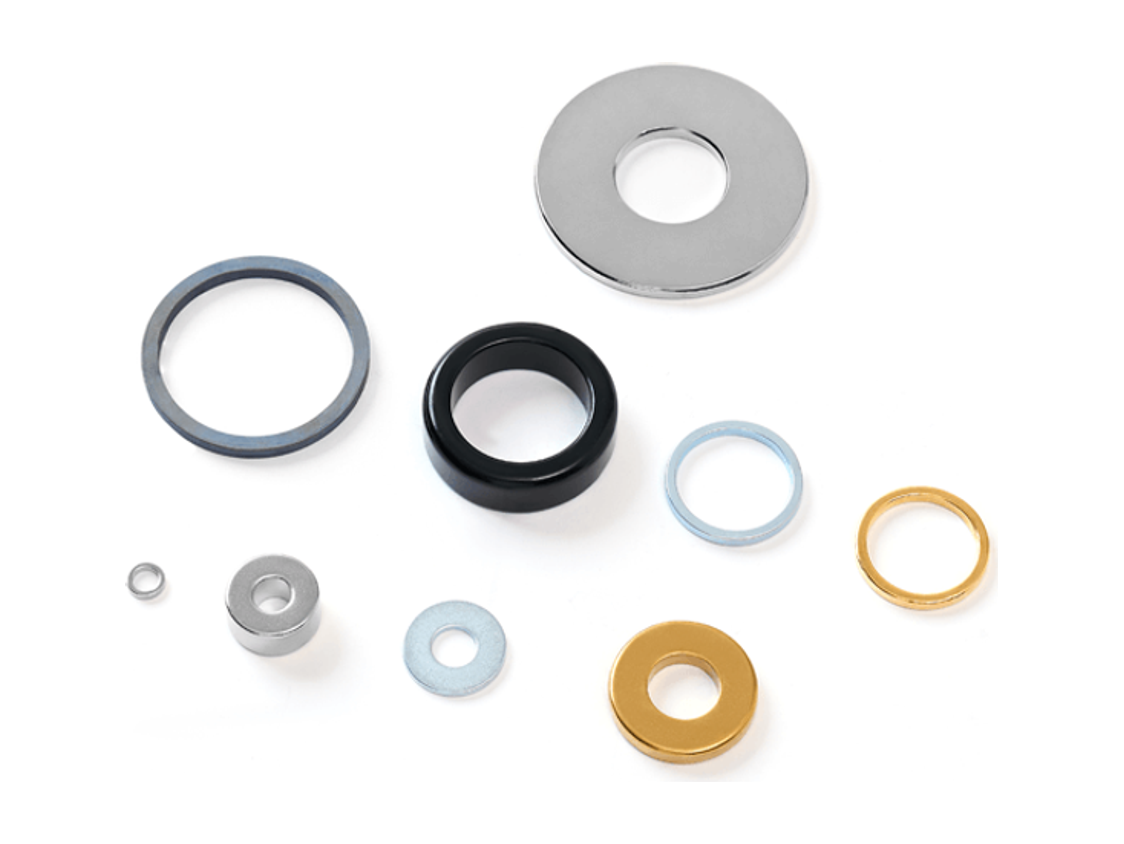

Rings

FAMILY / ANNULAR

Annular geometries where a bore, radial space or through-feature is part of the application.

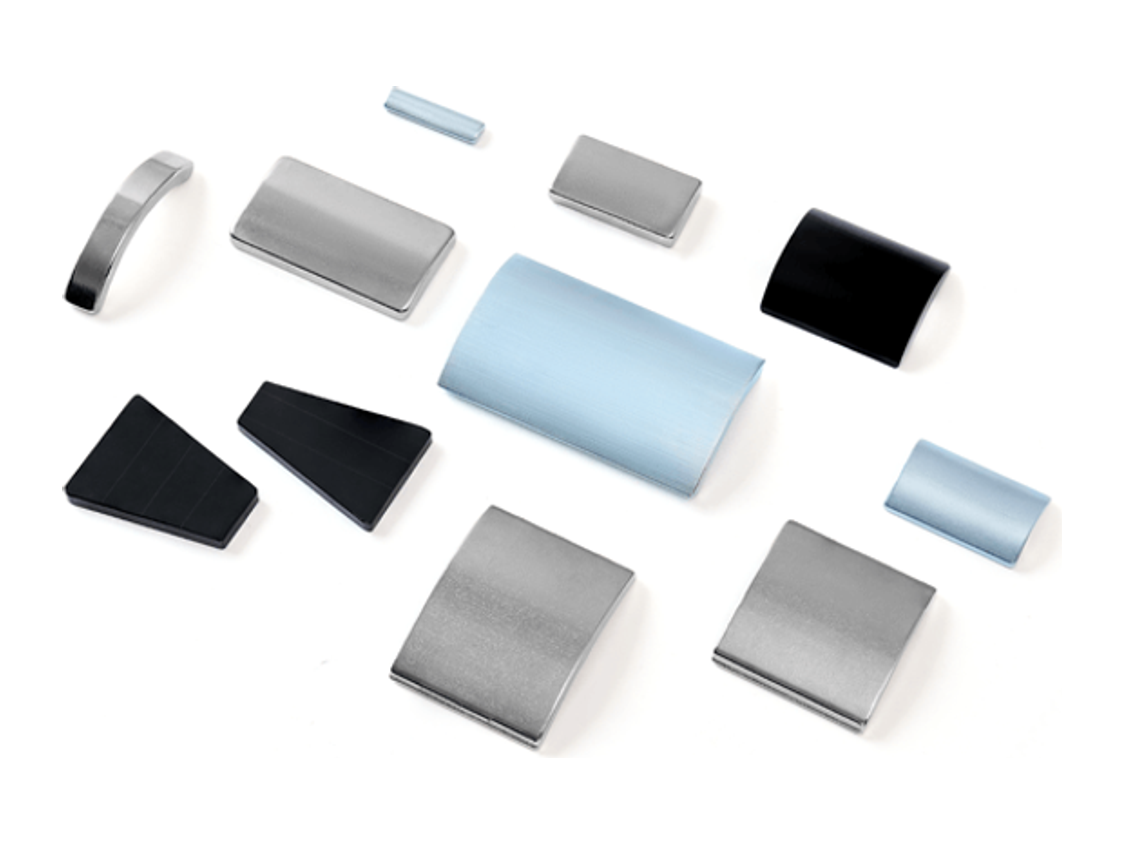

Arcs

FAMILY / CURVED

Curved segments for motors, rotors and other assemblies where the working radius sets the form.

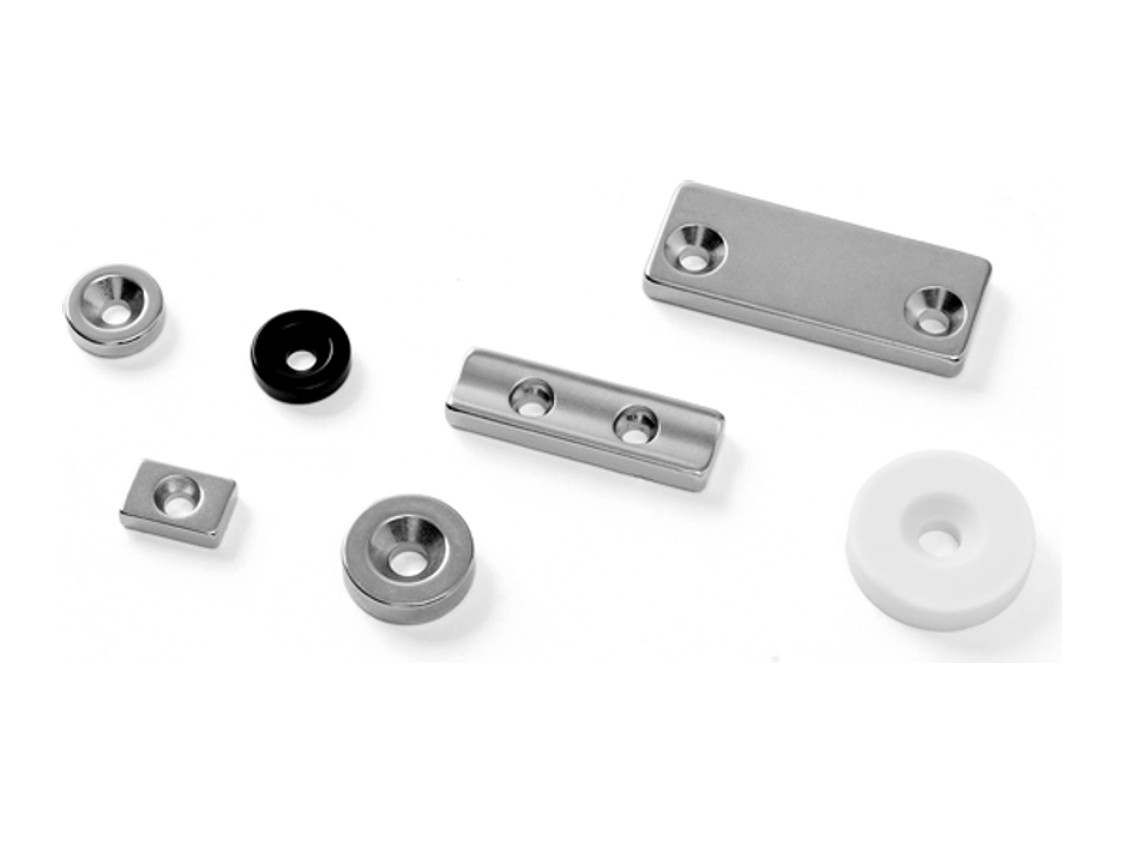

Countersunk

FAMILY / MOUNTING

Mounting-led geometries with a recess or hole that must stay connected to the drawing.

Custom geometries

FAMILY / TO DRAWING

Non-standard forms reviewed from PDF, STEP, STP, a written description or physical sample.

CHOOSE THE NEXT USEFUL ROUTE

Let the project basis choose the path.

A known shape, a non-standard geometry and an application-led enquiry need different first conversations. Start where the information is strongest.

KNOWN GEOMETRYRead a product family.

Start with discs, rings, arcs or another familiar form, then confirm the project detail.

NON-STANDARD GEOMETRYStart with the drawing.

Send dimensions, tolerance, coating, magnetization and the application context together.

APPLICATION FIRSTShare the project basis.

Use the structured RFQ when the working conditions matter as much as the shape.

KNOWN FORM

Start with a family.

Use the geometry index when the main shape is already understood and the next step is to confirm the detail.

Read the disc route

NON-STANDARD FORM

Start with the drawing.

For an unusual form, send the application, dimensions, tolerances, coating and magnetization context together.

Open the drawing review

Magnet forming and geometry evidence — FORMING EVIDENCE / THE PRODUCT IS READ THROUGH THE REQUIRED GEOMETRY.

WHAT STAYS WITH THE PART

Shape is only the first decision.

Grade, coating, thickness, magnetization direction and tolerance are considered together with the use case. The useful handoff is the complete project basis.

Material: NdFeB grade and temperature context, reviewed against the application.
Surface: Nickel, zinc, epoxy, phosphating or another required finish.
Direction: Axial, diametric, radial or customer-required magnetization.
Release: Final values subject to drawing, specification and inspection.

NEXT USEFUL INPUT

Bring the project basis.

Tell us the application, geometry and quantity you know. Add a drawing when it is ready.

Request an engineering quote

PROJECT INPUT PDF / STEP / STP
or a clear description. APPLICATION / GEOMETRY / QUANTITY
