MANUFACTURING / PROCESS NARRATIVE

From material
to magnet.

A connected manufacturing process keeps the drawing, the material and the finished part in the same conversation.

  1. 01RAW MATERIAL
  2. 02PRESSING
  3. 03SINTERING
  4. 04MACHINING
  5. 05COATING
  6. 06MAGNETIZATION
  7. 07INSPECTION

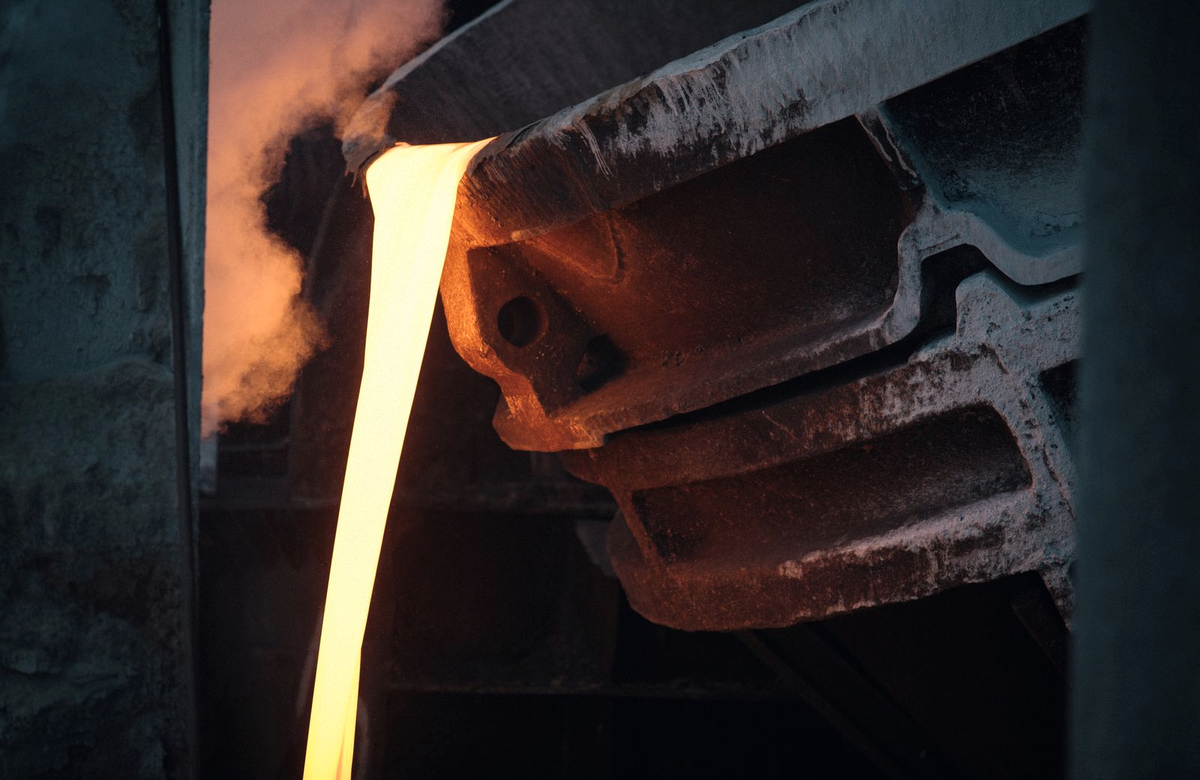

ASTROMAGNET manufacturing environment with magnet material and production equipment
REAL MANUFACTURING ENVIRONMENT / ASTROMAGNET

A process
you can see.

Production follows the requirement through the relevant process route, with checkpoints connected to the approved drawing and specification.

The sequence is not a catalogue of isolated capabilities. It is a way to keep material input, geometry, surface condition, magnetization and inspection in one useful handoff.

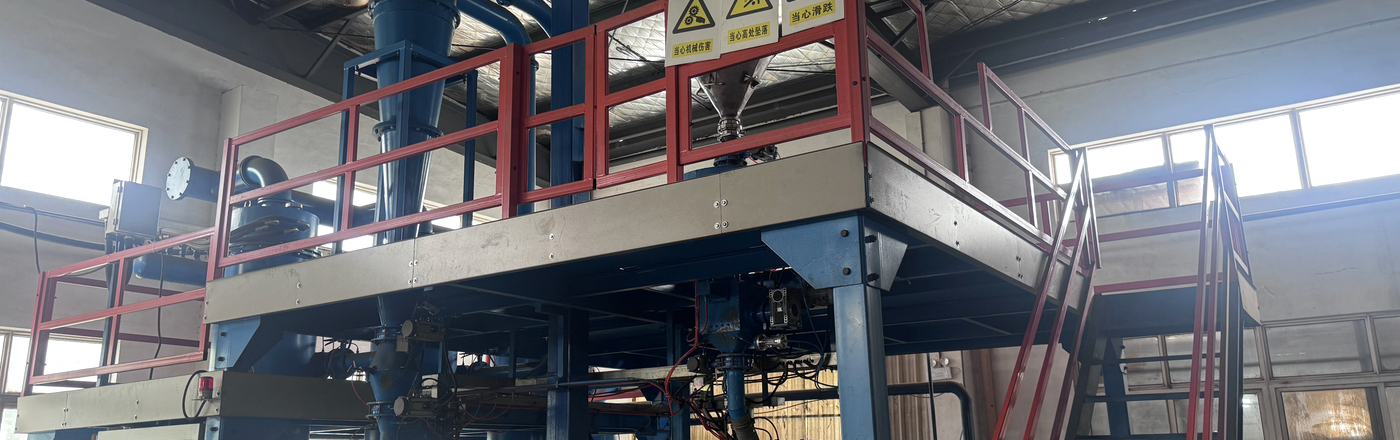

Powder preparation equipment in the ASTROMAGNET production environment
POWDER PREPARATION / REAL PRODUCTION ASSET
01

RAW MATERIAL

Start with the material basis.

Powder preparation establishes the material input for the next stage. The route stays connected to the drawing and the application context.

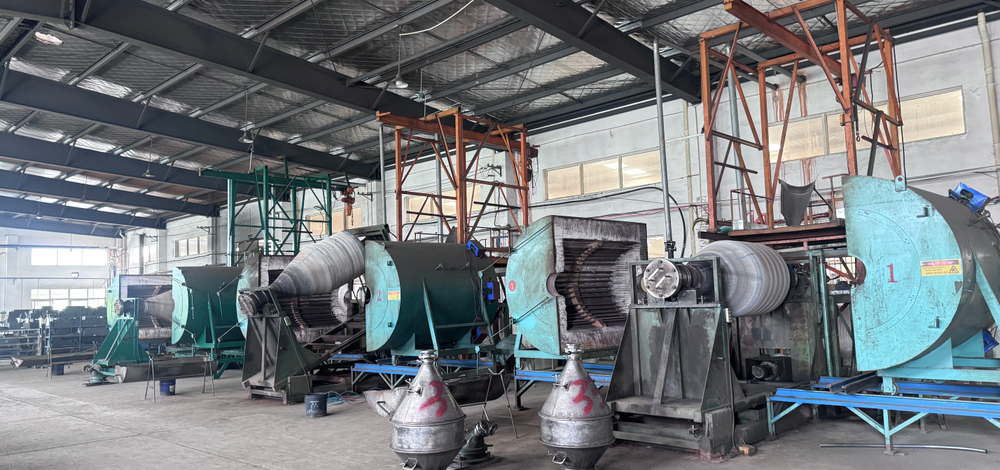

Pressing equipment used in sintered NdFeB magnet production
PRESSING / FORMING STAGE / REAL PRODUCTION ASSET
02

PRESSING

Shape and orientation enter the process.

Pressing establishes the near-net form and required orientation before controlled heat. Geometry and magnetization direction remain part of the same review.

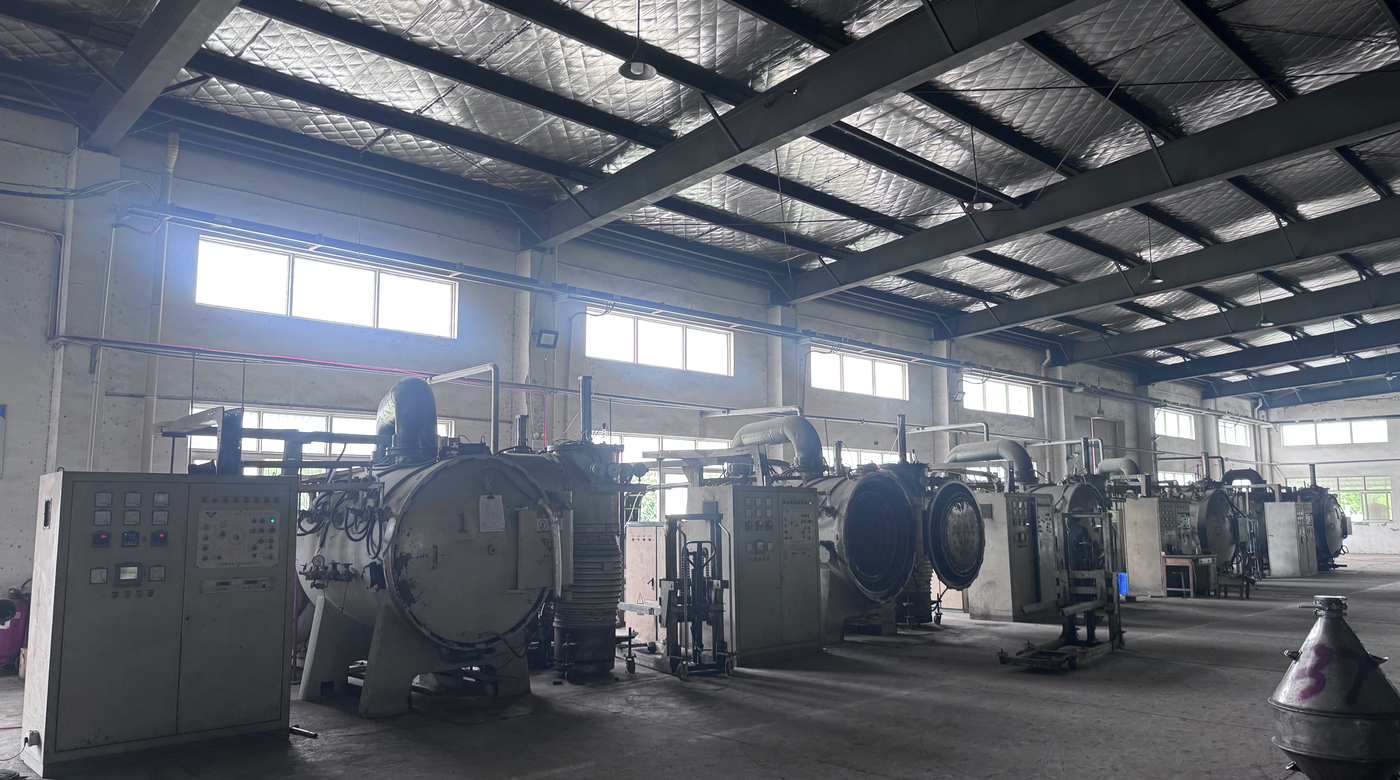

Sintering furnace equipment in the ASTROMAGNET workshop
SINTERING / PROCESS CLIMAX / REAL FACTORY ASSET
03

SINTERING

Controlled heat turns the form into a part.

Sintering is where consistency takes shape. The pressed form becomes the material structure that later grinding, cutting and finishing depend on.

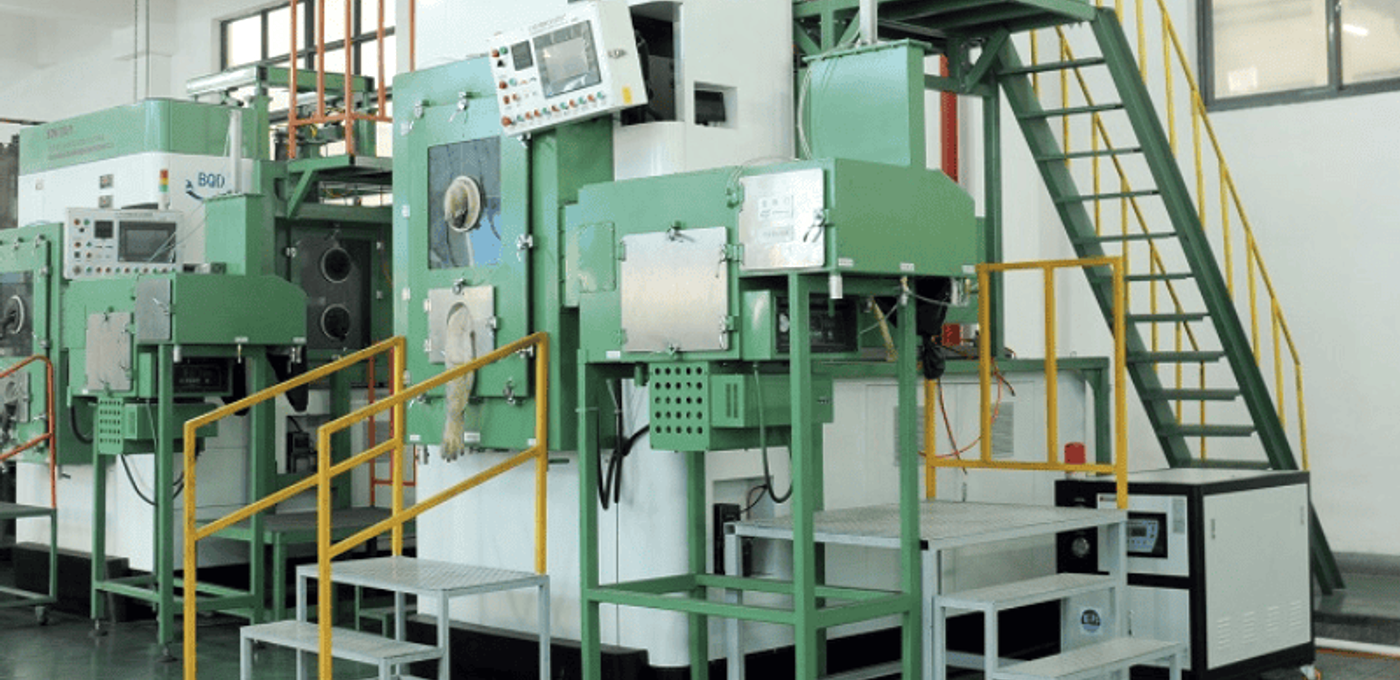

Machining equipment used for finishing magnet parts
GRINDING AND MACHINING / GEOMETRY CONTROL
04

MACHINING

The approved geometry is brought into focus.

Grinding, machining and multi-wire cutting bring the part toward the approved geometry, including the fit and edge conditions that matter in the assembly.

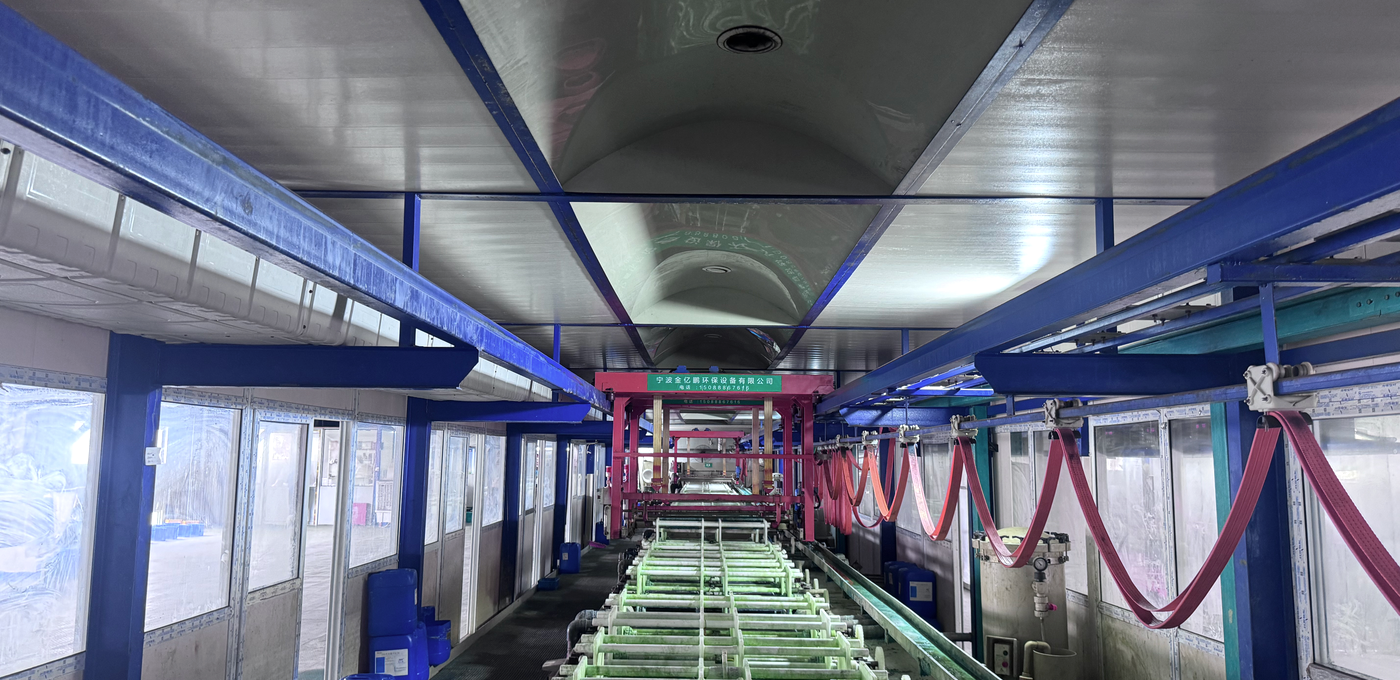

Surface finishing detail from the magnet production route
SURFACE FINISHING / COATING ROUTE
05

COATING

Surface condition follows the requirement.

Surface finishing and electroplating form part of the production route when the approved requirement calls for them. Nickel, zinc, epoxy and phosphating are available options subject to confirmation.

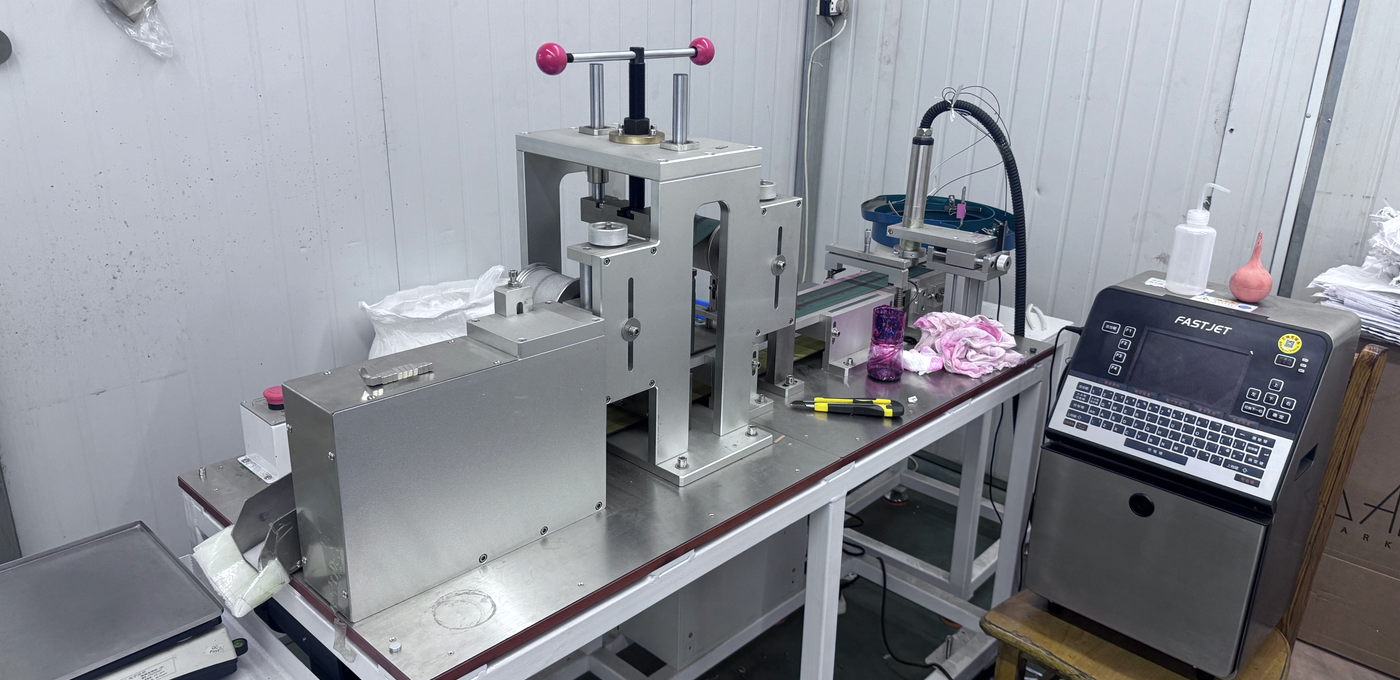

Magnetization equipment used in the finishing route
MAGNETIZATION / DIRECTION AND POLARITY
06

MAGNETIZATION

Direction and polarity travel with the specification.

Magnetization is completed to the specified direction and polarity, subject to the project requirement. The finished state is reviewed in the context of the drawing.

Dimensional inspection equipment used for component review
INSPECTION / DIMENSIONAL EVIDENCE / REAL ASSET
07

INSPECTION

Release evidence belongs beside the part.

Inspection brings dimensional, magnetic, visual and coating requirements into the release conversation so the handoff stays tied to the approved basis.

DimensionCritical geometry
MagneticPerformance review
SurfaceFinish condition

ENGINEERING HANDOFF

Start with the drawing.

Bring the geometry, grade, coating, magnetization and inspection context you already have. The next useful manufacturing conversation can start with a drawing, specification or clear requirement.

Request an Engineering Quote
PROCESS BASISDRAWING + SPECIFICATIONGeometry / material / release context
